bitcoin-tutorials/joinmarket/joinmarket_private_flow.md

A private flow through JoinMarket

Bitcoin privacy starts on the base layer where cooperative transactions with equal amount outputs - known as coinjoins - are used.
This document aims to provide an introduction to using JoinMarket, a decentralized, liquidity market based coinjoin implementation following basic good practices.

• Common definitions
  • Mixdepth
  • Sweep
  • Status labels
  • Orderbook
  • Minimum size to coinjoin
  • Maximum size to coinjoin
  • Screenshots from the orderbook
• The flow of funds
• Running the Tumbler
• Sending transactions manually and running the Yield Generator
  • Deposit
  • Sweep
  • Send or participate in multiple coinjoins
    • The Taker role
    • The Maker role
  • Leaving the JoinMarket wallet
    • When
    • How
      • Do
      • Don't
• More Reading
• Questions and discussions

Common definitions

Mixdepth

• One of the accounts in the JoinMarket wallet.
• Abbreviated to m0 / m1 / m2 / m3 / m4
• All are derived from the same BIP32 and BIP39 compatible HD seed.

Sweep

• It means sending one or multiple utxos without creating change.
• It is achieved by sending all utxos (except the ones frozen) from an account.
• The amount is not fixed and fees come off the sum of the inputs.

Status labels

• applied automatically by JoinMarket via a simple script

  • deposit: output of a simple transaction to new address
  • cj-out: one of the equal amount outputs
  • change-out: one of the unique amount outputs from a cj
  • non-cj-change: output of a transaction without equal amounts
  • reused: a utxo on an address which has been used previously

Orderbook

• Any platform collecting the public orders of the peers.
• General docs on the order book (including how to run without Bitcoin Core): https://github.com/JoinMarket-Org/joinmarket-clientserver/blob/master/docs/orderbook.md
• A public example: https://nixbitcoin.org/orderbook

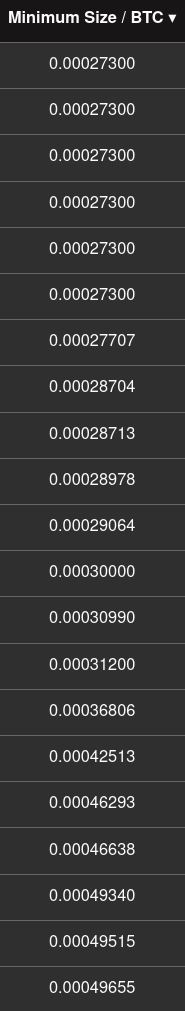

Minimum size to coinjoin

• The default is 100k sats (+/-10%) so that is a safe choice.
• On the example below offers start at 6 peers offering min 27300 sats.
• Running the Tumbler would require to start with a higher amount as the fees can take up a significant portion.

Maximum size to coinjoin

• The max amount offered is limited by the wallet of each Maker.
• It is the highest amount in one single mixdepth (-0-10%).
• Multiple bitcoin amounts are offered by several (10+) peers.
• On the example below 21 peers offer 19+ BTC

Screenshots from the orderbook

• Taken in March 2022.
• On the website click the top of a column to order by it's attribute.

The flow of funds

• First need to state that one single coinjoin doesn't improve privacy much.
• Participating in more coinjoins is essential. Find below the two main ways to achieve this.

Running the Tumbler

• Using the Tumbler is a higher time preference option and usually is the best tool to use if the funds are needed in the near future - it can take multiple hours, up to days.
• Multiple coinjoins are sent through the accounts including sweeping transactions at the start and at the end.
• Breaks up the deposited amounts and sends to at least 3 final addresses without leaving change behind.
• For the best outcome avoid merging between the final addresses.
• The initiator acts repeatedly as a Taker and pays all the miner and coinjoin fees;
• It is implemented in the JoinMarket-QT GUI and in the command line as the tumbler.py.
• For a detailed usage guide see:
  • https://github.com/JoinMarket-Org/joinmarket-clientserver/blob/master/docs/tumblerguide.md
• Video demonstration of the Tumbler function in QT GUI:
  • https://www.youtube.com/watch?v=hwmvZVQ4C4M&t=827s
• Discussed further in:
  • https://gist.github.com/chris-belcher/7e92810f07328fdfdef2ce444aad0968
  • https://reyify.com/blog/the-445-btc-gridchain-case#recommendations

Sending transactions manually and running the Yield Generator

Deposit

• Send to a new address in m0 - could be any of the accounts, but suggesting using the first one for simplicity.
• Deposit a single or multiple coins from a single funding source at a time.
• Select the newly deposited coin(s) with freeze/unfreeze if there are others in the account.

Sweep

• Start with detaching the deposited coins from their history.
• Can send to a new address in the same account (could be any, but keep it simple).
• There is no change created, so there is need to separate the cj-out from the change-out.

Send or participate in multiple coinjoins

• Stretch out in time to avoid timing analyses.

The Taker role

• the Taker is the initiator and coordinator of the coinjoin - takes the liquidity on offer.
• As the coordinator it has the most privacy benefits.
• The Taker pays all the fees (miner and coinjoin fees).
• Send coinjoins to a new address in the next mixdepth.
• In a coinjoin multiple coins can be merged by sending custom amounts or sweeping.

The Maker role

• The Makers are offering their coins to be used in coinjoins - market makers.
• Being a Maker can be thought of as providing a service, but also comes with privacy benefits.
• Activate the Yield Generator (Maker / Earn) to start.
• To get selected more often it is best to have a a sizeable Fidelity Bond. See:
  • https://nixbitcoin.org/orderbook/fidelitybonds
  • https://github.com/JoinMarket-Org/joinmarket-clientserver/blob/master/docs/fidelity-bonds.md
• As a Maker the coins will circle through the accounts automatically:

  ... m0 -> m1 -> m2 -> m3 -> m4 -> m0 -> m1 -> m2 -> m3 -> m4 ...


• Only the cj-out propagates to the next account.
• The change-out stays behind in the same account where the funding utxo was.

Leaving the JoinMarket wallet

When

• The more coinjoins the funds were through the better.
• Consider that the privacy benefit from coinjoins is breaking down with time as the peers are gradually exposed or clustered.
• If deposited only to m0 and followed the steps above all coins in m4 must have been through at least 5 coinjoins.
• In a long running, active Maker wallet some funds could have made multiple circles - there is no indication of this by default

How

Do

• Can only send (merge coins) from one account at a time.
• Send to multiple separate destinations (separate wallets with different purposes - not to be merged later).
• Sweep whole accounts or coins and don't leave change behind.
• Fund lightning nodes or send to cold storage via coinjoin(s).
• Pay with Payjoin to BIP78 compatible wallets to obfuscate the amount sent.

Don't

• Avoid sending out the whole amount which entered the wallet a few transactions ago all at once.
• Don't merge a change from a previous transaction when sending to a new destination.

More Reading

• https://github.com/JoinMarket-Org/joinmarket-clientserver/tree/master/docs
• https://en.bitcoin.it/Privacy

Questions and discussions

• IRC through Matrix: https://matrix.to/#/#joinmarket:libera.chat
• Telegram: https://t.me/joinmarket.org
