On macOS, make sure you have the Apple Command Line Developer tools installed on your machine.
Install rust. You can grab the installation command at https://www.rust-lang.org/tools/install
Install python3.

Warning

python3.11 currently breaks this build.

Run the following commands (the last one will take a while, go for a walk or something 😀):

pip install esptool
rustup install nightly-2022-10-20
rustup component add rust-src --toolchain nightly-2022-10-20
cargo install cargo-espflash ldproxy

Signer

Plug in the signer to your computer via data-enabled micro-USB.

Note

The only use of the data usb connection to the signer is to write the program binary to flash memory - during operation, the usb connection is only used for power.

cd ~
git clone https://github.com/stakwork/sphinx-key.git
cd sphinx-key
export SSID=wifi_name_you'll_use_to_configure_sphinx_key
export PASS=password_of_wifi_you'll_use_to_configure_sphinx_key
./deploy.sh. This commands takes a while, it builds and flashes everything!
You will eventually be shown the logs of the signer.
Wait for the message Waiting for data from the phone!. The LED should blink green.
Open a new terminal window, and cd ~/sphinx-key/tester && cargo build
In the ~/sphinx-key/tester directory, create a file .env with the settings shown below:

SSID="foo" # name of your home wifi - signer will use that to connect to the internet and ping the remote node
PASS="bar" # password of your home wifi
BROKER="xx.xx.xx.xx:1883" # IP address and port your broker is listening on on your remote server.
NETWORK="regtest"
SEED=c7629e0f2edf1be66f01c0824022c5d30756ffa0f17213d2be463a458d200803 # you can use the script at ~/sphinx-key/sphinx-key/newseed.sh to generate a fresh seed.

Connect to the very first wifi network you specified above, enter the password, and then in ~/sphinx-key/tester run cargo run --bin config.

Note

The sphinxkey network does not grant access to the internet, so ignore any warnings of that fact :)

Once the setup is complete, the ESP will restart and attempt to connect to wifi.
The LED will first blink yellow while it is connecting to the wifi.
When the signer is pinging for the broker, the LED on the ESP blinks purple.
On the logs, you should see BROKER IP AND PORT and LED STATUS: ConnectingToMqtt
Now that the signer is configured, and pinging for the node, we'll proceed with setting up the node on the remote server.
You can take a break here if you want, just unplug and plug the signer back in - all the settings you configured up until now are written to non-volatile flash memory.
After you plug the signer back in, launch cd ~/sphinx-key && ./monitor.sh to print the logs to your screen once again.

Remote Node Setup

Follow the instructions at this link to build a CLN branch that works with the signer: https://gitlab.com/lightning-signer/vls-hsmd/-/blob/main/SETUP.md
Then do cd ~ && git clone https://github.com/stakwork/sphinx-key.git && cd sphinx-key/broker && cargo build.
Create the directory ~/.lightning and in that directory write the file config with at least the following settings:

network=regtest
# Adapt the part after the colon below to point it to the sphinx-key-broker binary
subdaemon=hsmd:/home/ubuntu/sphinx-key/broker/target/debug/sphinx-key-broker

In the same directory, also create the file broker.conf with the template shown below:

network="regtest"
mqtt_port=1883

Finally, run the binary at ~/vls-hsmd/lightning/lightningd/lightningd to launch the node. It will first establish a connection with the signer before proceeding with the usual operation of a CLN node.
Once the connection is established, the LED on the signer should start to blink white, which means your signer is now connected to your node, and is ready for normal operation.
Use the binary at ~/vls-hsmd/lightning/cli/lightning-cli to manage your node.
If you've reached this far, congratulations ! You are all setup with a validating lightning signer. Go show it to your friends :)

How to completely reset the signer

Take out the SD card from its slot, and use your computer to clear all the data on it. Place it back in its slot after you've done so.
Plug in your signer to your computer.
cd ~/sphinx-key && ./deploy.sh
You can now go to the signer section above to get going again.

DIY Hardware Setup


Sparkfun Shopping List

ESP32-C3 Mini Development Board: https://www.sparkfun.com/products/18036
SparkFun microSD Transflash Breakout: https://www.sparkfun.com/products/544
Breadboard - Self-Adhesive (White): https://www.sparkfun.com/products/12002
Break Away Headers - Straight: https://www.sparkfun.com/products/116
Jumper Wire Kit - 140pcs: https://www.sparkfun.com/products/124

Soldering and SD Card Format

Warning

This signer currently does not work with SD cards that come with the UHS-I feature.

You'll need a microSD card formatted using the FAT32 filesystem.
- On MacOS, go to Disk Utility.
- Click on the SDCard's disk in the left hand pane.
- Click on the Erase button on the cetner top toolbar.
- Then choose MS-DOS (FAT) for the format.
- Finally click on Erase, at the bottom right of the dialogue box.
Also make sure you have a micro-USB cable capable of transferring data.

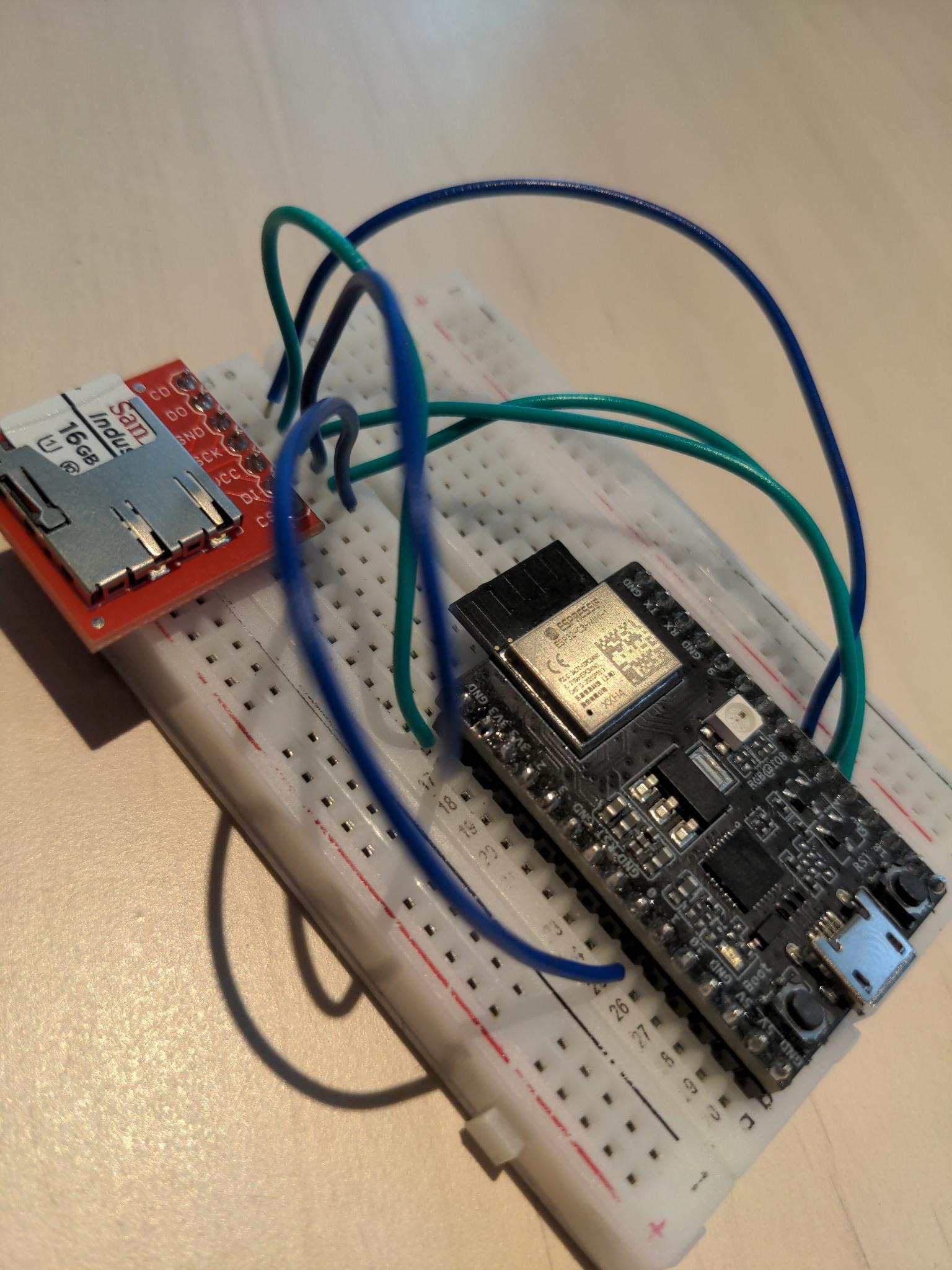

Once you have the parts, solder the breakaway headers to the microSD card board as shown in the picture above.

Now follow the table below and the picture above to make all the connections:

SD card pin	ESP32-C3-DevKitM-1 v1.0	Notes
DO	GPIO2	Pin numbered 6 on board, same for the others below
CS	GPIO10	No need for any of the 10kOhm resistors mentioned in docs as of July 2022
SCK	GPIO6
DI	GPIO7
VCC	3V3
GND	GND
